Showing all 10 results
25 standard is a slimline aluminium glazing system comprising “1-part” for use as a head and wall channel, and a “2-part” (chair and bead) used as a base and wall channel. Both components measure 25mm in width by 25mm in height and are compatible with all other components in 25mm system. 25 standard sections come with pre-inserted Q-Lon acoustic seal that accommodates either 10mm/10.8mm or 12mm/12.8mm glass. All components are 3000 mm long.
The 25 deep is single-glazed “1-part” section, for use as a head channel that offers a deflection of +/-20mm. It measures 25mm in width by 50mm in height.
The 25 deep section comes with pre-inserted Q-Lon acoustic seal that accommodates either 10mm/10.8mm or 12mm/12.8mm glass.
This section is compatible with all other components in 25mm system.
All components are 3000mm long.
The male and female deflection set offers a deflection of +/-25mm. The female section measures 32.5mm x 68mm, whereas the male is 25mm x 63mm. The overall measurements of the set are 32.5mm / 25mm in width by 93mm in height.
The 25 male section comes with a pre-inserted Q-Lon acoustic seal that accommodates either 10mm/10.8mm or 12mm/12.8mm glass. The 25 female section has a pre-inserted brush to protect the set from scratching against each other.
These sections collaborate with all other components in the 25mm system.
All components are 3000mm long.

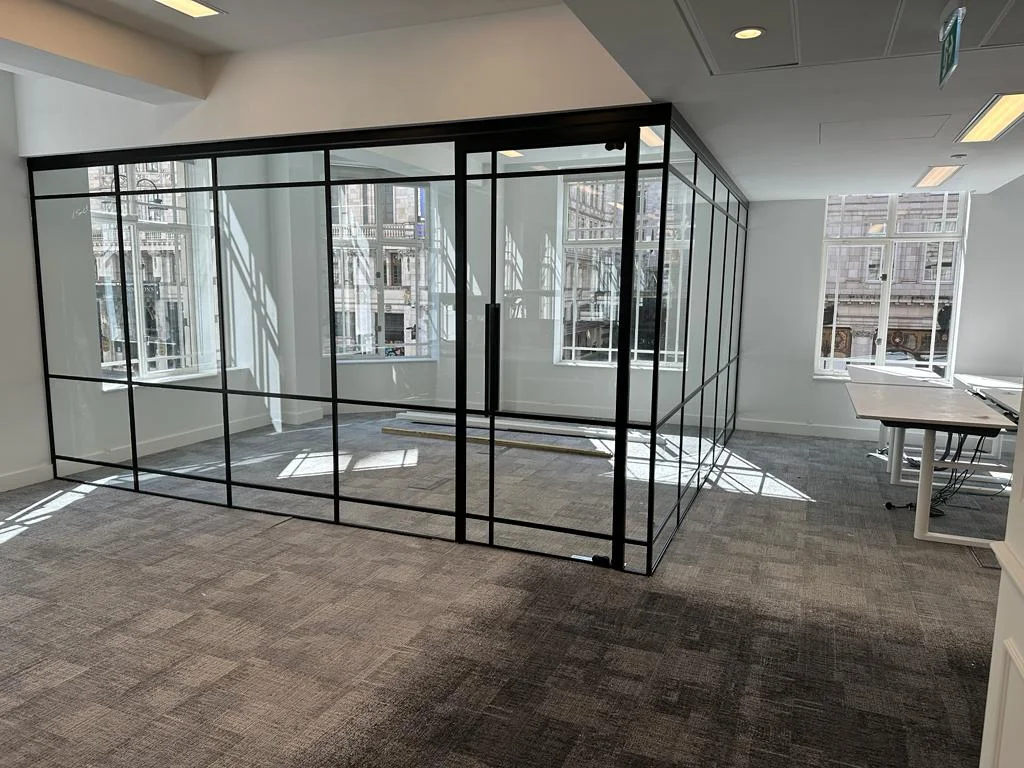

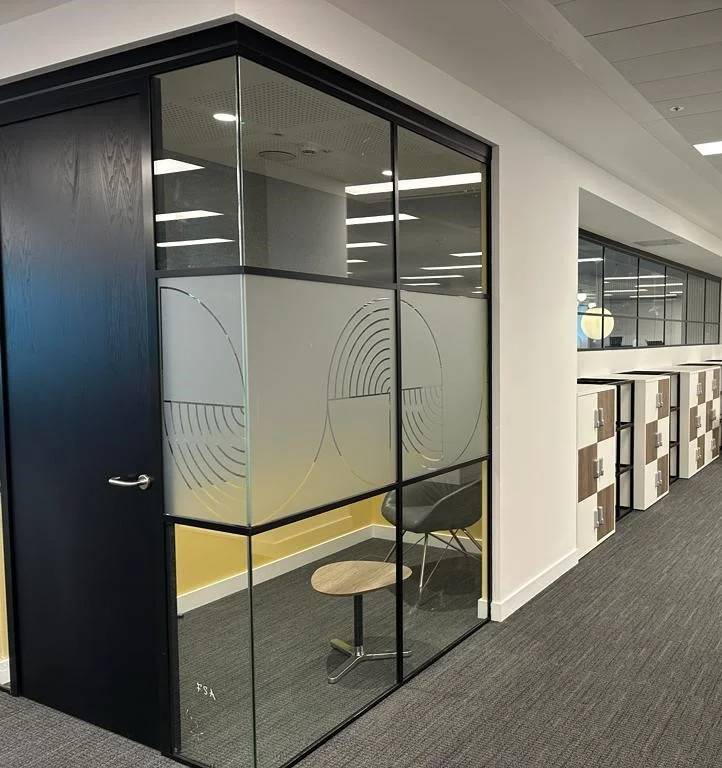

The 25 Banded is achieved by using aluminium bars which can be cut and installed to bespoke layout. When installed it is flush to the trackwork for enhanced aesthetics. It measures 25mm wide by 6mm thick and is bonded to both faces of glass using double sided foam tape.
Banded screens can be complemented by banded on site glass door.
This is achieved using 16mm x 1.6mm ‘U’ channel and 25mm x 1.6mm flat bars. All components are 3000mm long.
The 25 door frame is a part of a single glazed system. It has a slimline but robust design. It can accommodate a door up to 44mm thick or a 54mm rebated door. Suitable for frameless glass, framed glass and timber doors. Incredibly easy to install, it is mitre cut in our workshop in Bishop’s Stortford to bespoke sizes, with pre-drilled and counter-sunk holes at the top of the head, and includes internal locating mitre brackets and an aluminium fixing plate for the bottom of the door legs. It comes with a pre-inserted Q-Lon acoustic seal and a clip-in section at the top of the head for easier installation of the head to the ceiling. We offer a bespoke milling service for hinges and a strike plate as per customer specification. This door frame can be used with floor springs and is compatible with all other components in the 25mm system. All door frames can be cut up to 3000mm.
The 25 mm aluminium frame system is one of the most innovative and flexible solutions in the market for designing office spaces and partitions. It provides exceptional quality, combining sleek aesthetics with functional performance, meeting the highest standards in both design and functionality. Thanks to precisely engineered aluminium profiles and carefully selected trim profiles, the 25 mm system is the perfect choice for modern offices, coworking spaces, and open-plan environments.
The 25 mm aluminium frame system features high durability and aesthetic appeal, blending the advantages of modern design with exceptional functionality. This system allows for the creation of spacious, acoustically insulated rooms, making it the perfect solution for office spaces, meeting rooms, and other areas where comfort and aesthetics go hand-in-hand.
With modular aluminium frame systems, you can create flexible, multifunctional spaces. The combination of various aluminium profiles and aluminium trim profiles provides the ability to easily adapt the system to the specific requirements of each project.
The 25 mm aluminium frame system is a solution that combines top-quality craftsmanship with easy installation. By using this system, your office space will not only look stylish but also provide superior acoustic insulation, which is essential in environments where soundproofing is a priority.
Durability and Aesthetics: Made from high-quality aluminium profiles, the 25 mm system is robust, resistant to mechanical damage, and durable against environmental factors.
Improved Acoustic Insulation: The use of double glazing in the 25 mm system enhances sound insulation, making it a must-have for offices and public spaces.
Flexibility: Thanks to the modular aluminium frame system, users can tailor the system to their exact needs, both in terms of size and finish options.
The use of aluminium trim in the 25 mm system ensures sleek finishing of edges and corners, enhancing the overall aesthetics and durability of the system. Aluminium trim profiles perfectly complement aluminium profiles, creating a cohesive and elegant look for your partitioning system.
The 25 mm aluminium frame system allows you to create spaces with a minimalist character, where aesthetics and functionality work together. Thanks to 25 mm aluminium profiles, your office space will benefit from a clean, modern appearance that fits current design trends. Choosing the 25 mm aluminium frame system is an investment in long-term durability and easy maintenance, ensuring low costs for upkeep over time.
