25-DF - 25mm Aluminium Door Frame for Glass and Timber Doors

Precision-Cut Aluminium Door Frame Profile – Designed for Strength, Flexibility, and Acoustic Performance

This 25mm aluminium door frame profile is a sleek, robust solution engineered to accommodate single-glazed timber or glass doors up to 44mm thick, as well as 54mm rebated doors. Designed for compatibility with frameless glass, framed glass, and timber doors, this aluminium frame combines architectural elegance with practical durability for a wide range of interior applications.

Durable Aluminium Door Frame for Customised Installations

Each aluminium door frame is mitre-cut to bespoke sizes and supplied with pre-drilled, counter-sunk holes at the head, internal mitre brackets for alignment, and a secure aluminium fixing plate at the base of the door legs. These precision elements ensure fast, accurate installation and a professional finish.

Enhanced Acoustic Insulation and Easy Integration

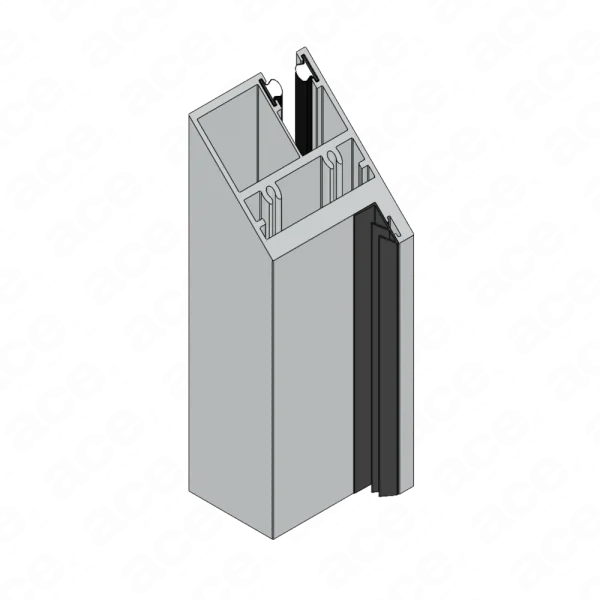

The frame comes pre-fitted with a Q-Lon acoustic seal to improve sound insulation, while an included batwing seal enhances the acoustic performance and tightness around the door. A smart clip-in head section simplifies installation into ceiling structures.

Custom Milling and Full System Compatibility

Tailored hinge and strike plate milling services are available on request, allowing complete configuration flexibility. This aluminium door frame profile is also fully compatible with all components in the 25mm aluminium system – including 25-deflection, 25-deep, 25-2P, and 25-1P – and with standard floor spring mechanisms.

Colour Finishes and Sizing

• Cut to size – maximum length: 3000mm

• Available RAL colours: 9005 (Black), 9010 (White), 9006 (Silver), 7016 (Anthracite)

• Custom colours available on request (POA)

Key Features of the 25mm Aluminium Door Frame

• Suitable for 44mm thick or 54mm rebated doors (glass or timber)

• Expertly mitre-cut with precision-drilled and counter-sunk holes

• Integrated Q-Lon and batwing acoustic seals for enhanced sound protection

• Clip-in head section for easier ceiling installation

• Compatible with floor springs and 25mm aluminium partition profiles

• Custom milling available for hinges and strike plates

The 25mm aluminium door frame is the ideal choice for architects, specifiers, and installers seeking a modern, high-performance frame that delivers seamless integration, excellent acoustics, and a clean architectural appearance.
