Slimline Framing for Banded Glass Systems | 54mm Aluminium Box Section

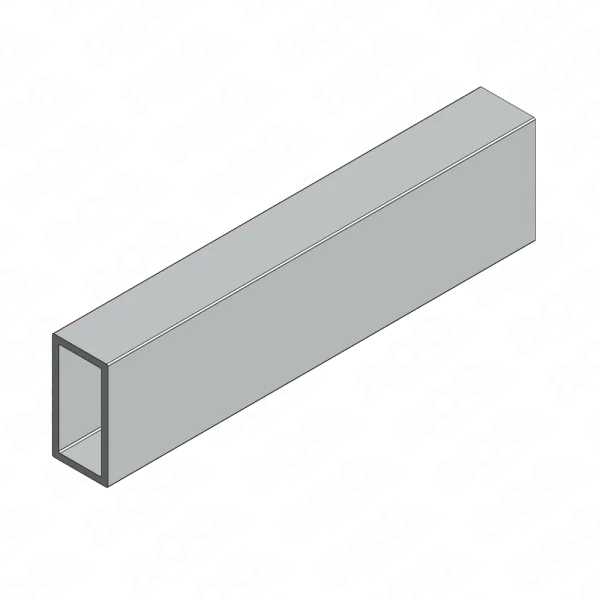

The 54mm aluminium box section is a precision-formed profile designed to be internally bonded to glass surfaces, delivering a refined, framed appearance as part of a banded glass screen. Ideal for use within double-glazed applications, this aluminium section for glass partition is an essential part of the 54mm banded system, offering both structural support and aesthetic enhancement.
Technical Precision for Modern Glass Installations
-
Dimensions: 13mm wide × 25mm thick
-
Material: Aluminium 6063 T6 for durability and long-term performance
-
Application: Internally bonded using industry-standard tapes (e.g. Tesa 62510, Tesa 62505, Scapa 3259), this aluminium profile integrates with other aluminium frames and bars (e.g. 25-bar) to form a seamless banded layout.
Engineered for Compatibility
The 54mm box section is fully compatible with other components in the 54mm system, including the 54-2P and 54-1P aluminium channels, ensuring a consistent fit across all profiles. Whether you're working with aluminium channel for 10mm glass, 12mm glass, or corresponding aluminium u channel profiles, this solution fits precisely into high-performance double-glazing configurations.
Ideal for High-End Glass Partition Systems
This aluminium frame system is perfect for commercial and residential projects where clean lines and a modern aesthetic are essential. Use it to create bespoke, banded screen designs that combine architectural appeal with technical efficiency.
Finishes available: RAL 9005, 9010, 9006, 7016. For bespoke colours, please contact us (POA).
