£80.85 (excl. VAT)

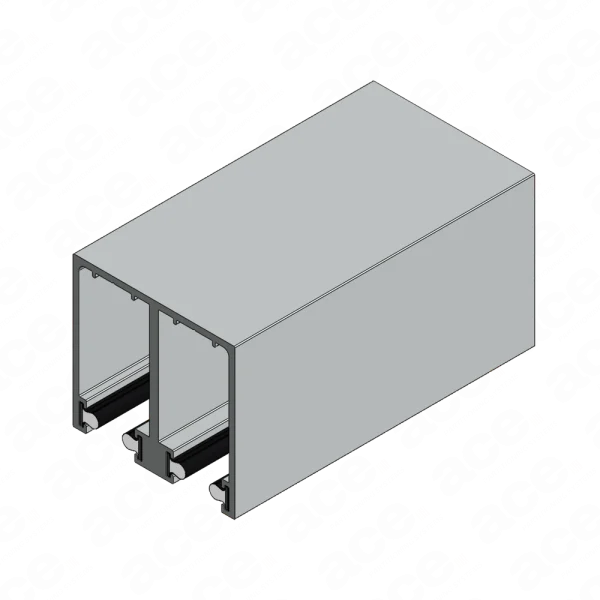

Double-Glazed Aluminium Head Channel
The 54-Deep is a one-part aluminium profile, designed for use as a head channel in double-glazed systems, offering a deflection range of +/- 20mm. Made from high-quality Aluminium 6063 T6, this robust double glazing aluminium frame provides strength and flexibility in glass partition installations.
Dimensions: 54mm wide, 50mm high, and 3000mm in length.
Features a pre-inserted Q-Lon acoustic seal, suitable for glass thicknesses of 10mm/10.8mm or 12mm/12.8mm, ensuring superior acoustic insulation.
Fully compatible with all components in the 54mm system, the 54-Deep aluminium channel ensures a secure and durable installation, making it ideal for both commercial and residential double-glazed applications.
This aluminium section for glass partition seamlessly integrates with double glazing frames and is a perfect choice for aluminium channel for 10mm glass, aluminium channel for 12mm glass, as well as aluminium u channel for 10mm glass and aluminium u channel for 12mm glass. It also serves as a reliable aluminium channel for glass doors, enhancing modern architectural designs.
Available in RAL 9005, 9010, 9006, 7016. For bespoke colours, please get in touch (POA).
The 54-Deep aluminium section for glass partition is a precision-engineered head channel, designed for use in double glazing aluminium frames requiring both structural rigidity and flexible deflection. Crafted from Aluminium 6063 T6, it ensures long-term durability in demanding residential and commercial environments.
With a generous deflection range of ±20mm, the 54-Deep provides vital tolerance for structural movement, while maintaining consistent alignment in glass partition systems. Its one-part design simplifies installation without compromising performance.
Measuring 54mm in width and 50mm in height, this aluminium channel for 10mm glass and 12mm glass includes a pre-inserted Q-Lon acoustic seal to support glass panels of 10mm/10.8mm and 12mm/12.8mm. This ensures reliable sound insulation in all types of double glazing frames.
Whether used as an aluminium channel for glass door systems or part of a full partition assembly, the 54-Deep meets both design and performance requirements, making it an excellent option for modern aluminium door frames.

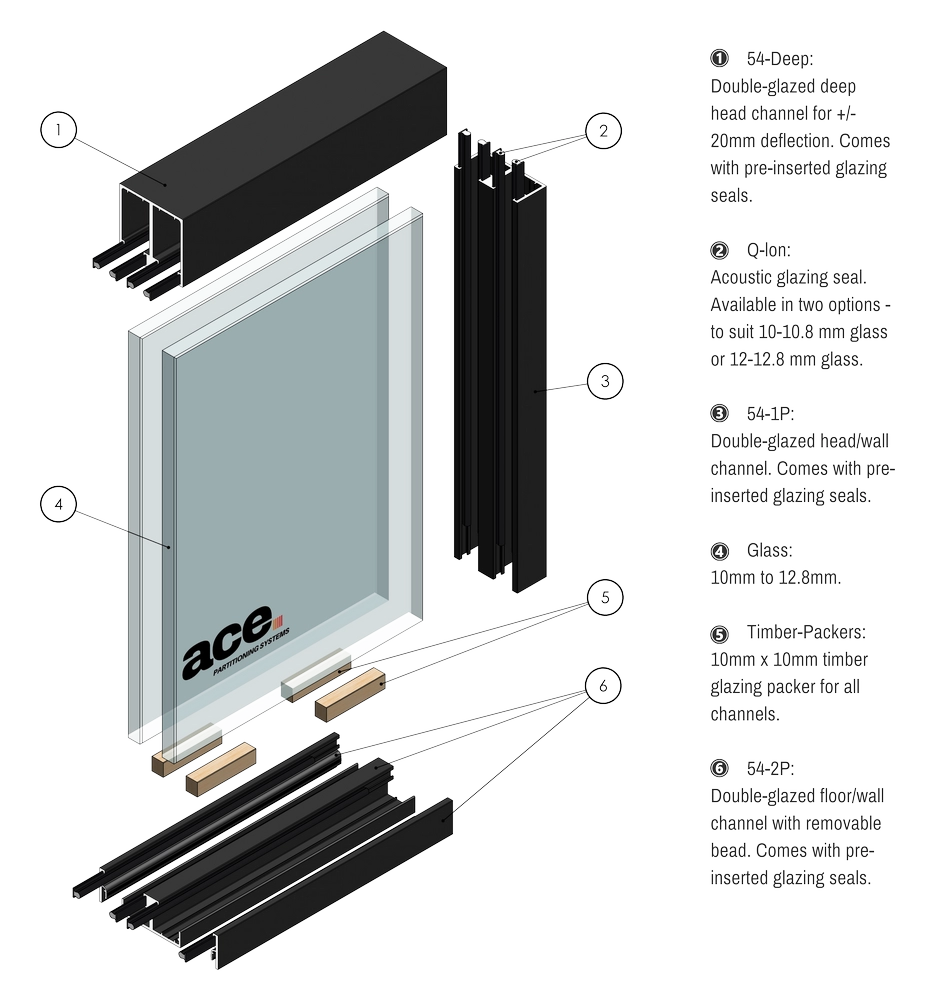

Designed for full integration with all profiles in the 54mm range—including 54-Box, 54-DF, 54-2P, and 54-1P—this aluminium u channel for 10mm glass and 12mm glass supports cohesive system layouts across multiple installation scenarios.
This makes the 54-Deep a dependable solution for interior glass systems that demand a clean finish and technical adaptability.
Available finishes: RAL 9005, 9010, 9006, 7016.
For bespoke colour options, please contact us (POA).
We invite you to view our interactive, online PDF brochure, where you can browse through our entire collection of systems.
GET YOUR CATALOGUE
We are experts in manufacturing of aluminum products for glazed partitions, harnessing a wealth of experience. Our commitment to excellence ensures that we consistently meet our clients’ high expectations, delivering superior quality within the agreed timeframe and budget.
Florence Wood –
We were dealing with some uneven ceilings that were making the glass install difficult. This 50mm high profile provided the flexibility we needed to get everything level. Using it with the 54-Box internal section gave the whole double-glazed system a very clean, professional finish.
Newcastle_Nick –
The delivery of the 3000mm lengths was handled very well, with no damage to the powder coating. I also ordered the 54-2P profiles for the base and everything arrived on time. The technical support was helpful in confirming the deflection limits before I placed the order.
Lily Johnson –
The 54-Deep head channel is exceptionally robust. The deflection range is perfect for commercial sites and the pre-inserted acoustic seals provide a high-quality finish for the glass.
William.White.88 –
had a job where the floor was slightly out but this deep head channel allowed us to compensate at the top without any gaps. it looks smart and the black ral 9005 finish is exactly what the client wanted for their modern office. matched it with the 54-df frame for a solid result.
User_UK_119 –
We needed a reliable head channel for a 12mm glass partition. This 54-Deep profile handled the deflection easily and ensured the installation remained secure.
